The Hidden Costs of
Inaccurate Steel Detailing

— and How to Avoid Them

In the world of steel fabrication, precision isn’t just important — it’s everything.
 A single error in a shop drawing or connection detail can cascade into delays, rework, material waste, and serious financial losses. Yet many projects still underestimate the true cost of inaccurate detailing until it’s too late.

At ARENA International, we believe that better detailing upfront means smoother fabrication, fewer surprises, and stronger project outcomes. Let’s explore why steel detailing accuracy is critical — and how to protect your projects against costly mistakes.

The True Cost of Detailing Errors

When detailing mistakes slip through, the impact goes far beyond just minor adjustments:

  • Rework and Production Delays: Incorrect dimensions, missing holes, welds or material preparation lead to fabrication errors that slow down production lines and waste valuable shop hours.

  • On-Site Erection Problems: Field teams encountering misfit parts or structural clashes experience erection delays, safety risks, and costly improvisations.

  • Material Waste: Ordering incorrect quantities or misfabricating components inflates project costs and eats into margins.

  • Client Relationship Damage: Repeated project hiccups erode trust and can harm future business opportunities for both fabricators and detailers.

Financial Losses: Time extensions, back charges, expedited shipping, and overtime hours quickly add up — turning profitable projects into break-even or loss situations.

In an industry where timelines are tight and budgets are tighter, there’s little room for errors.

Common Causes of Steel Detailing Mistakes

Several factors contribute to inaccuracies during the detailing phase:

  • Incomplete designs or discrepancies in the information provided are issues that require additional coordination and document control efforts across all trades. Specifically for detailing, these problems have an immediate effect, slowing down the progress of modeling and potentially impacting the overall schedule.
  • Communication Gaps: Misalignment between engineers, architects, detailers, and fabricators leaves critical information out of the loop.

  • Lack of Clash Detection: Without full 3D modeling and clash analysis, conflicts between structural and MEP systems may not surface until construction — when fixes are most expensive.

Compressed Schedules: Deadlines that can only be achieved cutting corners, increasing the risk of errors.

Identifying these root causes early is key to reducing risk downstream.

How to Prevent Inaccurate Detailing

Forward-thinking fabricators and builders implement practices that dramatically improve detailing quality:

  • Early coordination among general contractors, designers, and the detailing team: prioritizing the resolution of high-impact issues while deferring only minor problems to the approval stage — significantly improves workflow times and helps prevent bottlenecks that could affect not only detailing progress but also on-site construction schedules.

  • Rigorous Quality Control Processes: Double-checking drawings through internal reviews and cross-team checks helps catch errors before they reach fabrication.

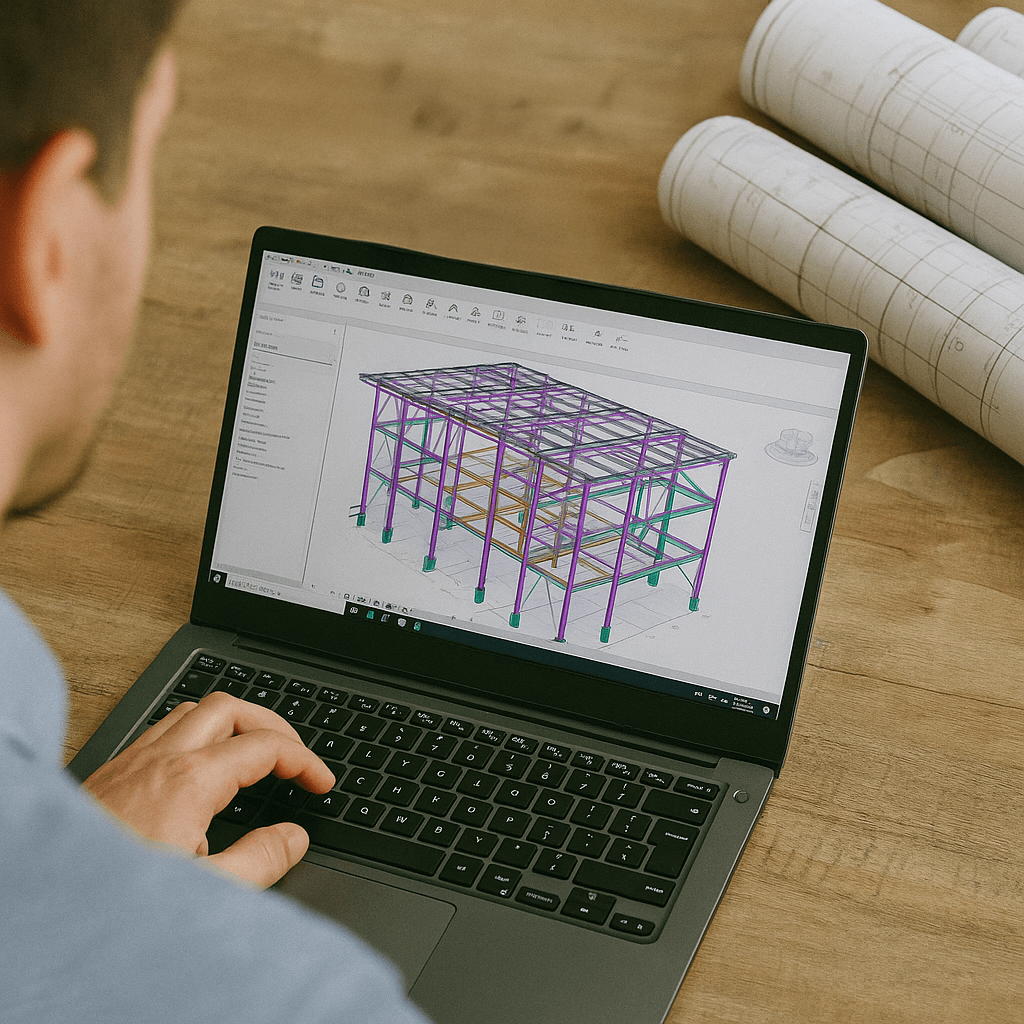

  • Adoption of 3D BIM Modeling: Tools like SDS2 and Tekla Structures allow teams to visualize complete structures, detect clashes early, and optimize constructability.

  • Strict Adherence to Industry Standards: Adhering to established guidelines such as the AISC Code of Standard Practice, IBC, SEAA, and OSHA ensures consistency, safety, and full compliance with applicable codes.
  • Choosing the Right Detailing Partner: Working with specialized firms that prioritize quality over speed pays off in fewer mistakes, smoother fabrication, and lower risk.

At ARENA International, this approach isn’t optional — it’s embedded into everything we do.

Identifying these root causes early is key to reducing risk downstream.

How ARENA International Delivers Precision You Can Trust

ARENA International specializes in steel detailing that supports fabricators, not complicates their work. Here’s how we help reduce your risk:

  • Tekla and SDS2 Expertise: Our team uses industry-leading software to ensure model accuracy, clash detection, and constructability from day one.

  • Robust Quality Checks: Every project undergoes multiple levels of review before release, ensuring errors are caught early.

  • Clear, Responsive Communication: Weekly updates, transparent workflows, and proactive discussions keep projects aligned.

  • Standards Compliance: We meticulously adhere to AISC and project-specific requirements, ensuring a smoother approval process and safer structures.

In a fast-paced industry, accuracy is the difference between winning and losing — and we’re here to help you win.
